The Big Dipper

A three ton capacity harvest bin with a self-dumping hydraulic system, designed for six foot vineyard rows.


The Big Dipper

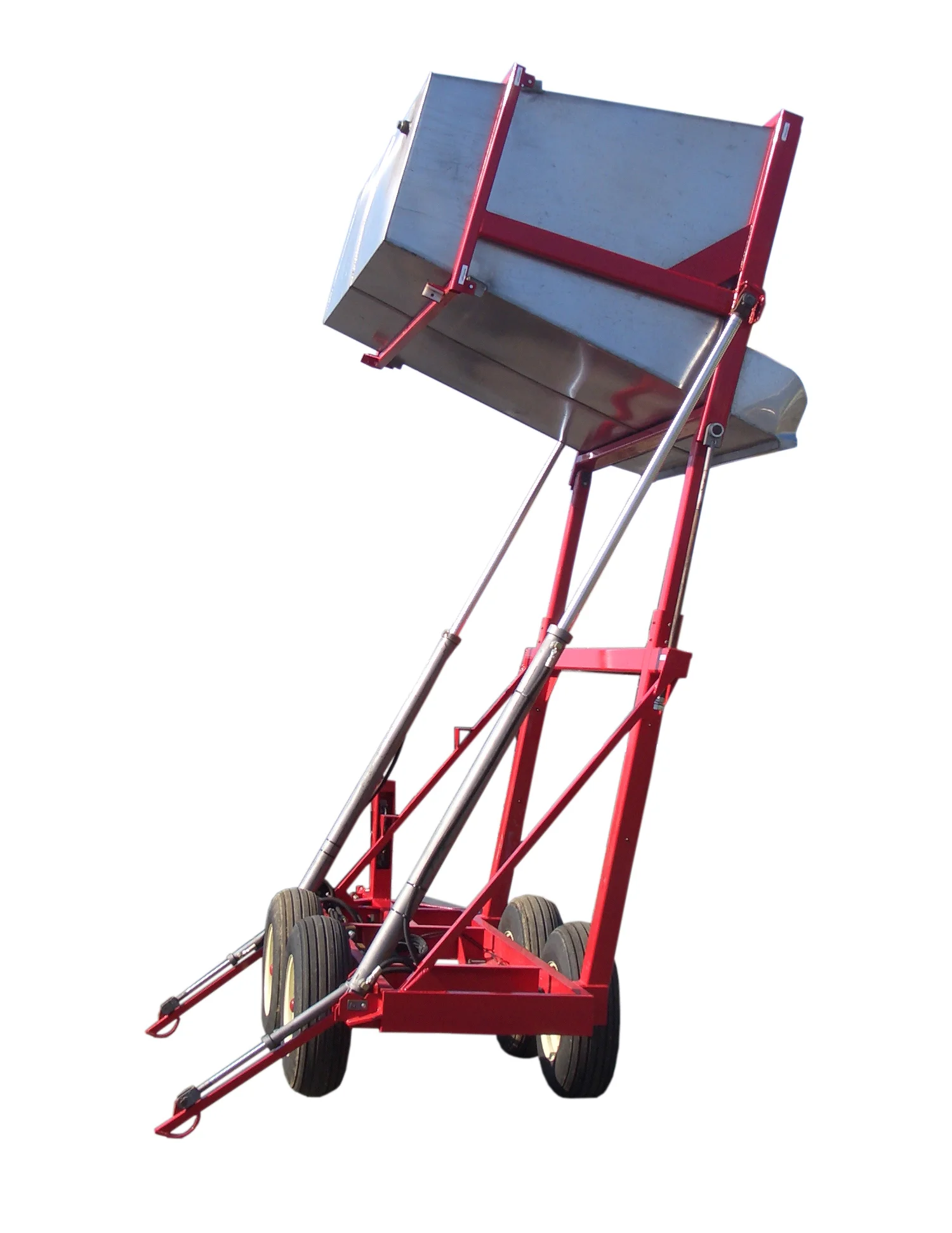

The Western Square Big Dipper is a 3-ton harvest bin with a specially designed hydraulic system that, with your help, will lift and dump itself. The Big Dipper is designed for use with a mechanical harvester and is perfect for six foot wide vineyard rows.

self dump cover photo placeholder.jpg

innovative design

Powered by your attached tractor, The Big Dipper's hydraulic system will both lift and dump its load as directed by a single tractor lever. Its efficient design allows it to fit in vineyard rows as narrow as six feet.

Our durable powder coating adds a lasting finish to the heavy-duty mild steel trailer frame. The high-grade stainless steel bin has a 3-ton capacity and can be removed for maintenance.



  • Designed for 6' vineyard rows
  • Single remote control valve operated from tractor
  • Load cells scale system allowing accurate harvest weights in the field
  • 9.5 x 15 water filled tires for balance
  • Heavy duty trailer frame with durable powder coating finish
  • High grade stainless steel gondola with approximately three ton capacity
  • Hydraulic side stabilizers for dumping
  • Industrial grade hydraulic lift cylinders
  • Adjustable height hitch
  • Access steps for bin inspection
  • Running gear rated at 10,400 pounds
  • Tandem axles

See our Big Dipper in action!
