Harvest Bins

Two ton capacity steel harvest bins designed for grapes or fruit or nuts.

Harvest Bins

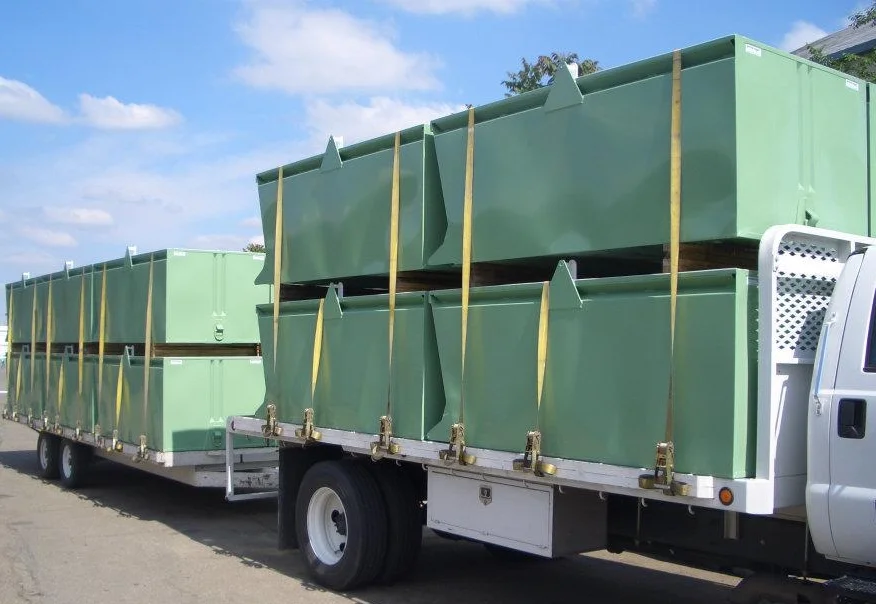

Green bins on truck.jpg

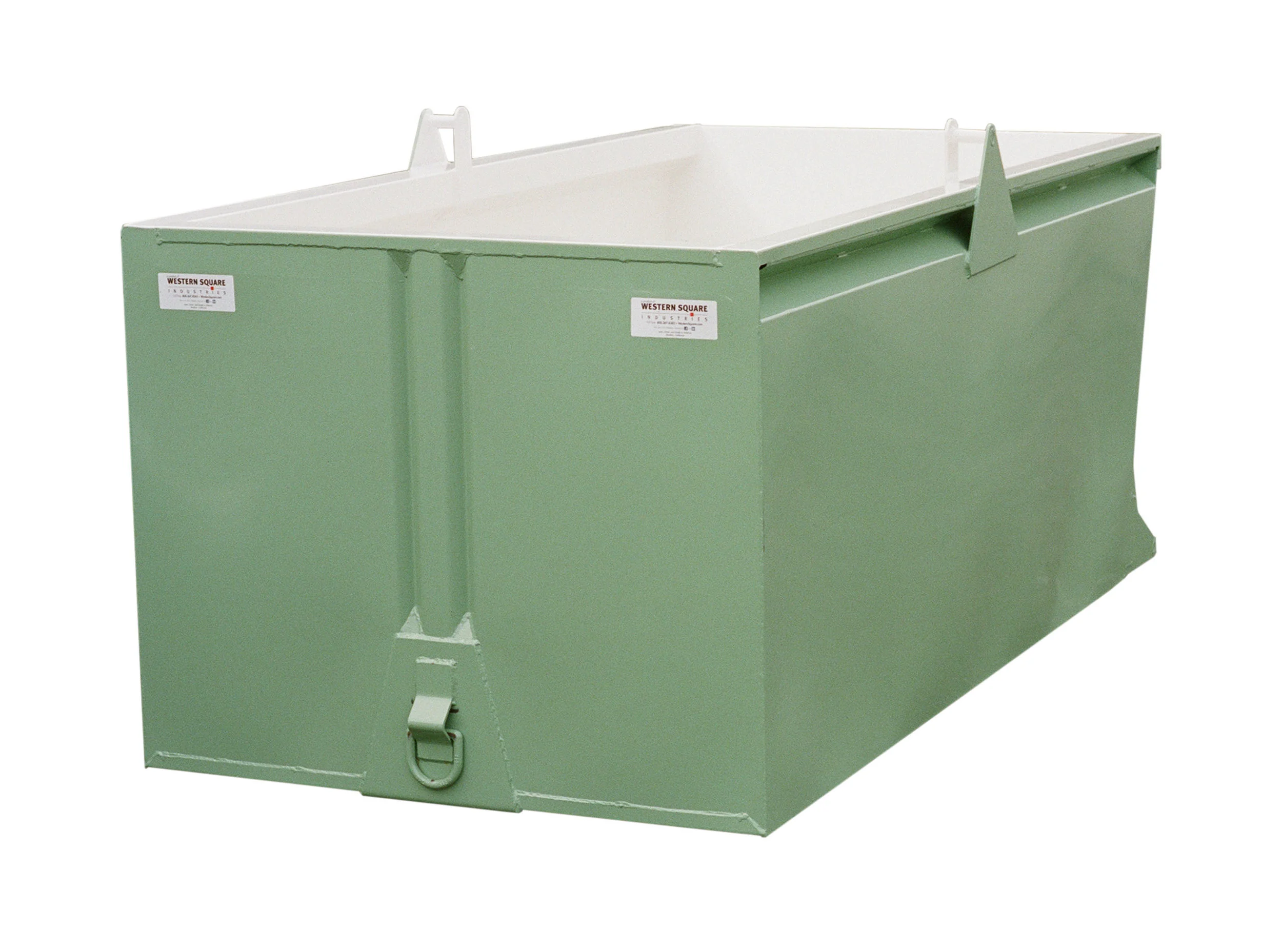

Our Two-Ton bin is the best designed in the industry



We are the only manufacturer to use powder coating (baked enamel) to coat steel bins. The inside coating of the bins is FDA approved food grade epoxy powder coating in a choice of white or gray. The outside coating is exterior grade polyester powder coating, which is available in several colors.

D-Ring

D-Ring

The D-ring end is ribbed so that the stress from lifting a full bin is distributed over the entire height of the bin, not just the D-ring itself.

The top rail is formed to provide excellent rigidity and dimensional stability. The channel on the outside of the rail is blocked to prevent hooks from catching.

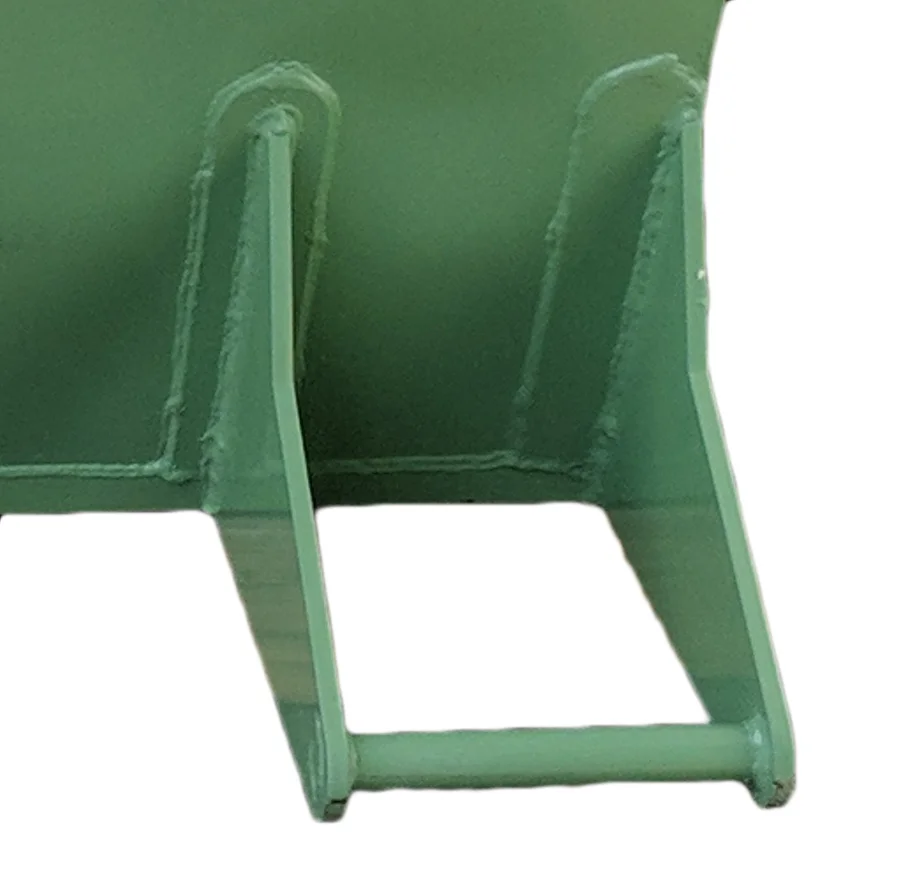

Triangular plate

Triangular plate

Lifting and pivot pins are welded to triangular shaped plates for maximum strength.

Our bin has the strength and dimensional stability needed for years of trouble free use, without added weight.

SPECIFICATIONS

  • 14 gauge steel
  • Approximately 438 pounds
  • Outside dimensions: 8' x 4' x 4'
  • Also available in stainless steel
